| Takeoff Weight |
|
| Dimensions |
- Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
- Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
|
| Max Ascent Speed |
|
| Max Descent Speed |
|
| Max Horizontal Speed (at sea level, no wind) |
- 21 m/s
- No faster than 19 m/s in EU regions.
|
| Max Takeoff Altitude |
|
| Max Flight Time |
- 46 minutes
- Measured in a controlled test environment. Specific test conditions are as follows: flying at a constant speed of 32.4 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
|
| Max Hovering Time |
- 40 minutes
- Measured in a controlled test environment. Specific test conditions are as follows: hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on environment, actual use, and firmware version.
|
| Max Flight Distance |
|
| Max Wind Speed Resistance |
|
| Max Tilt Angle |
|
| Operating Temperature |
- -10° to 40° C (14° to 104° F)
|
| Global Navigation Satellite System |
|
| Hovering Accuracy Range |
- Vertical:
- ±0.1 m (with vision positioning)
- ±0.5 m (with GNSS positioning)
- Horizontal:
- ±0.3 m (with vision positioning)
- ±0.5 m (with high-precision positioning system)
|
| Internal Storage |
- 8 GB (approx. 7.9GB available space)
|
| Hasselblad Camera |
|
| Image Sensor |
- 4/3 CMOS, Effective Pixels: 20 MP
|
| Lens |
- FOV: 84°
- Format Equivalent: 24 mm
- Aperture: f/2.8-f/11
- Focus: 1 m to ∞
|
| ISO Range |
- Video:
- Normal, Slow-motion:
- 100-6400 (normal color)
- 400-1600 (D-Log)
- 100-1600 (HLG)
- Night Mode:
- 800-12800 (normal color)
- Photo:
- 100-6400
|
| Shutter Speed |
- Electronic Shutter: 8-1/8000 s
|
| Max Image Size |
|
| Still Photography Modes |
- Single Shot: 20 MP
- Burst Shooting: 20 MP, 3/5/7 frames
- Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step
- Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s
|
| Photo Format |
|
| Video Resolution |
- H.264/H.265
- 5.1K: 5120×2700@24/25/30/48/50 fps
- DCI 4K: 4096×2160@24/25/30/48/50/60/120* fps
- 4K: 3840×2160@24/25/30/48/50/60/120* fps
- FHD: 1920×1080@24/25/30/48/50/60/120*/200* fps
|
| Video Format |
|
| Max Video Bitrate |
|
| Supported File System |
|
| Color Mode |
|
| Digital Zoom |
|
| Gimbal |
|
| Stabilization |
- 3-axis mechanical gimbal (tilt, roll, pan)
|
| Mechanical Range |
- Tilt: -135° to 100°
- Roll: -45° to 45°
- Pan: -27° to 27°
|
| Controllable Range |
- Tilt: -90° to 35°
- Pan: -5° to 5°
|
| Max Control Speed (tilt) |
|
| Angular Vibration Range |
|
| Sensing |
|
| Sensing |
- Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
|
| Forward |
- Measurement Range:
- 0.5-20 m
- Detection Range:
- 0.5-200 m
- Effective Sensing Speed:
- Flight Speed ≤ 15 m/s
- FOV
- Horizontal 90°, Vertical 103°
|
| Backward |
- Measurement Range:
- 0.5-16 m
- Effective Sensing Speed:
- Flight Speed ≤ 12 m/s
- FOV:
- Horizontal 90°, Vertical 103°
|
| Lateral |
- Measurement Range:
- 0.5-25 m
- Effective Sensing Speed:
- Flight Speed ≤ 15 m/s
- FOV:
- Horizontal 90°, Vertical 85°
|
| Upward |
- Measurement Range:
- 0.2-10 m
- Effective Sensing Speed:
- Flight Speed ≤ 6 m/s
- FOV
- Front and Back 100°, Left and Right 90°
|
| Downward |
- Measurement Range:
- 0.3-18 m
- Effective Sensing Speed:
- Flight Speed ≤ 6 m/s
- FOV:
- Front and Back 130°, Left and Right 160°
|
| Operating Environment |
- Forward, Backward, Left, Right, and Upward:
- surfaces with discernible patterns and adequate lighting (lux >15)
- Downward:
- surfaces with discernible patterns, diffuse reflectivity >20% (e.g. walls, trees, people), and adequate lighting (lux >15)
|
| Video Transmission |
|
| Video Transmission System |
|
| Live View Quality |
- Remote Controller:
- 1080p/30fps, 1080p/60fps
|
| Operating Frequency |
- 2.400-2.4835 GHz
- 5.725-5.850 GHz2
|
| Transmission Power (EIRP) |
- 2.400-2.4835 GHz:
- < 33 dBm (FCC)
- < 20 dBm (CE/SRRC/MIC)
- 5.725-5.850 GHz:
- < 33 dBm (FCC)
- < 30 dBm (SRRC)
- < 14 dBm (CE)
|
| Max Transmission Distance (free of interference) |
- FCC: 15 km
- CE: 8 km
- SRRC: 8 km
- MIC: 8 km
|
| Max Transmission Distance (with interference) |
- Strong Interference: urban landscape, approx. 1.5-3 km
- Medium Interference: suburban landscape, approx. 3-9 km
- Low Interference: suburb/seaside, approx. 9-15 km
|
| Max Download Speed |
- O3+:
- 5.5 MB/s (with DJI RC-N1 Remote Controller)
- 15 MB/s (with DJI RC Pro)
- 5.5 MB/s (with DJI RC)
- Wi-Fi 6: 80 MB/s*
|
| Lowest Latency |
- 130 ms (with DJI RC-N1 Remote Controller)
- 120 ms (with DJI RC Pro)
- 130 ms (with DJI RC)
|
| Antennas |
|
| Battery |
|
| Capacity |
|
| Weight |
|
| Nominal Voltage |
|
| Charging Voltage Limit |
|
| Type |
|
| Energy |
|
| Charging Temperature |
- 5° to 40° C (41° to 104° F)
|
| Charging Time |
- Approx. 96 minutes
- Use the included data cable of the DJI 65W Portable Charger.
|
| Charger |
|
| Input |
- 100-240 V (AC), 47-63 Hz, 2 A
|
| Output |
- USB-C:
- 5 V, 5 A
- 9 V, 5 A
- 12 V, 5 A
- 15 V, 4.3 A
- 20 V, 3.25 A
- 5-20 V, 3.25 A
- USB-A:
- 5 V, 2 A
|
| Rated Power |
|
| Battery Charging Hub |
|
| Input |
|
| Output |
- Battery Port: 12-17.6 V, max. 5 A
|
| Rated Power |
- DJI Mavic 3 Battery Charging Hub: 65 W
- DJI Mavic 3 Battery Charging Hub (100W): 100 W
|
| Charging Type |
- Three batteries charged in sequence
|
| Compatibility |
- DJI Mavic 3 Intelligent Flight Battery
|
| Storage |
|
| Recommended microSD Cards |
- SanDisk High Endurance 64GB V30 microSDXC
- SanDisk High Endurance 128GB V30 microSDXC
- SanDisk High Endurance 256GB V30 microSDXC
|
| Remote Controller |
|
| Max Operating Time |
- DJI RC-N1 Remote Controller
- Without charging any mobile device: 6 hours
- When charging a mobile device: 4 hours
|
| Max Supported Mobile Device Size |
- DJI RC-N1 Remote Controller
- 180×86×10 mm (L×W×H)
|
| Operating Temperature |
- DJI RC-N1 Remote Controller
- -10° to 40° C (14° to 104° F)
|
| Transmitter Power (EIRP) |
- DJI RC-N1 Remote Controller
- 2.400-2.4835 GHz:
- < 26 dBm (FCC)
- < 20 dBm (CE/SRRC/MIC)
- 5.725-5.850 GHz:
- < 26 dBm (FCC)
- < 23 dBm (SRRC)
- < 14 dBm (CE)
|

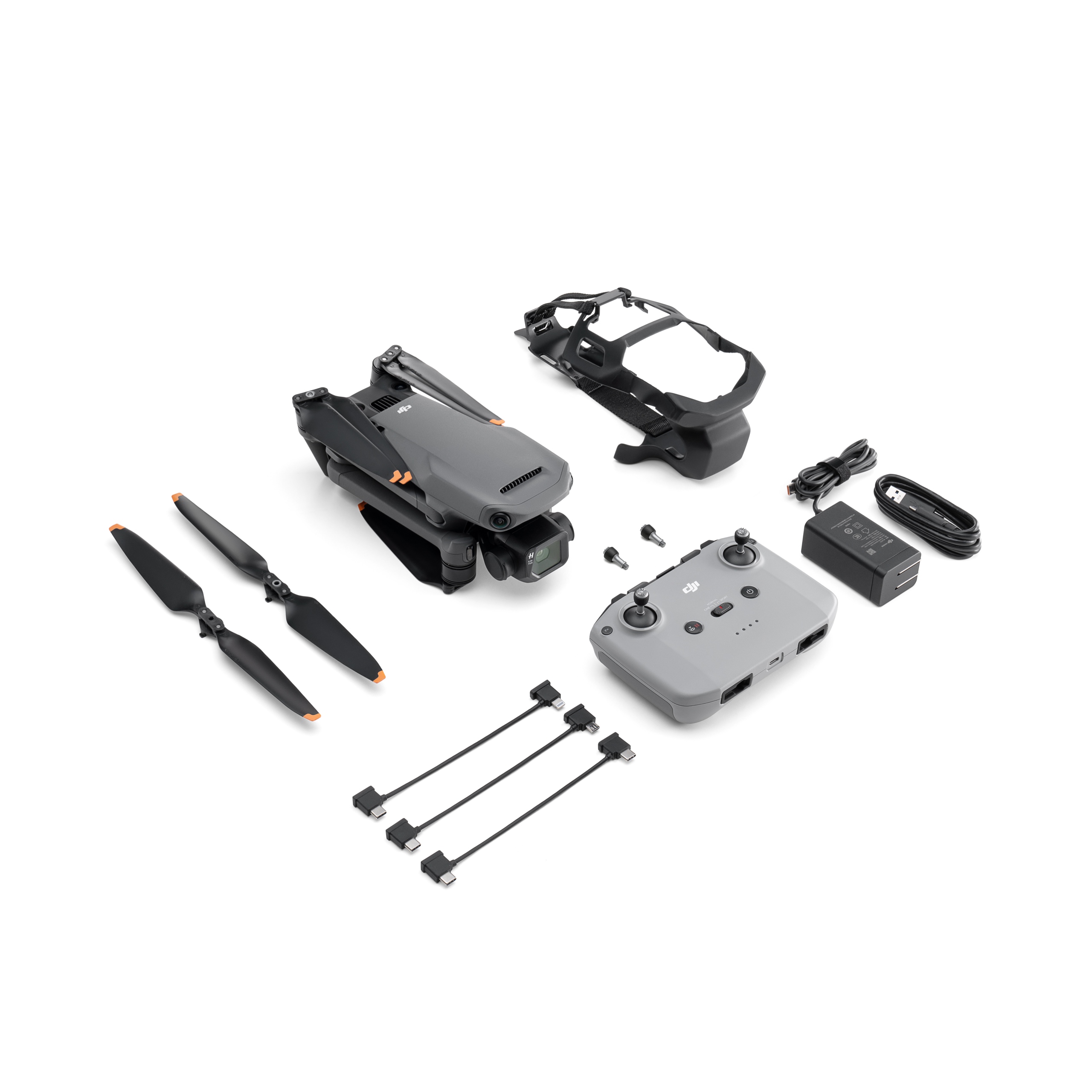

| In the Box |
- DJI Mavic 3 Classic
- DJI Mavic 3 Intelligent Flight Battery
- DJI RC-N1 Remote Controller
- DJI Mavic 3 Low-Noise Propellers (pair)
- DJI 65W Portable Charger
- USB-C Cable
- DJI RC-N1 RC Cable (USB-C Connector)
- DJI RC-N1 RC Cable (Lightning Connector)
- DJI RC-N1 RC Cable (Standard Micro-USB Connector)
- DJI Mavic 3 Classic Storage Cover
- Spare DJI RC-N1 Control Sticks (pair)
|
