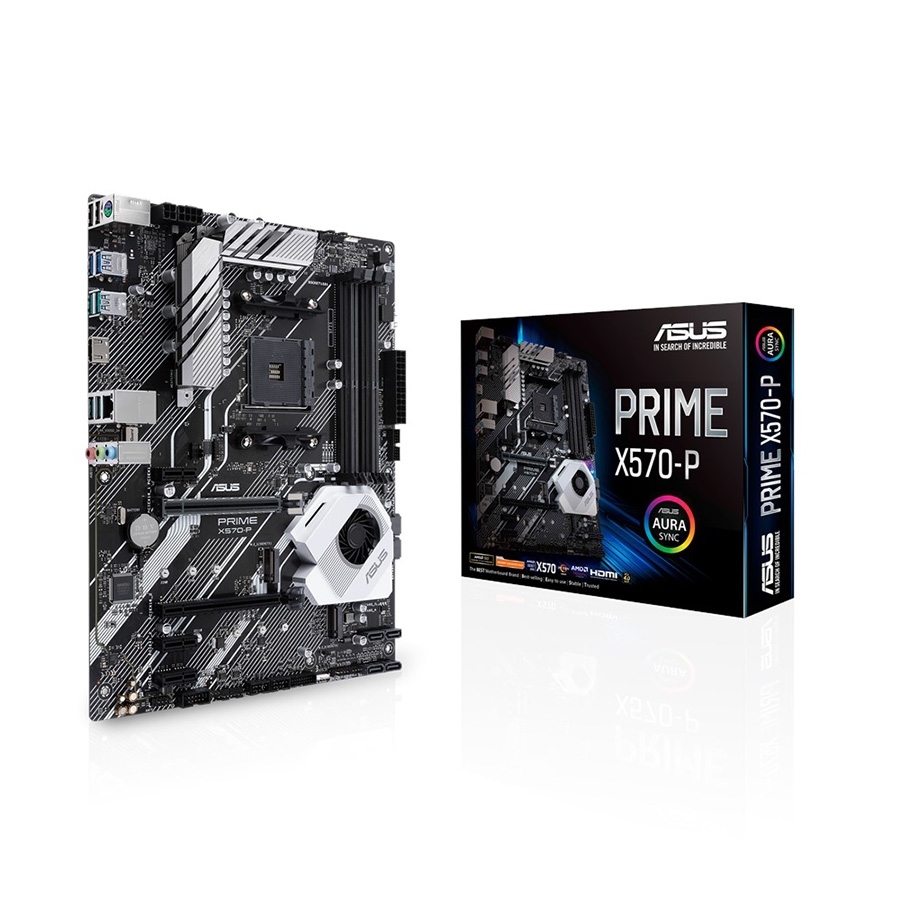

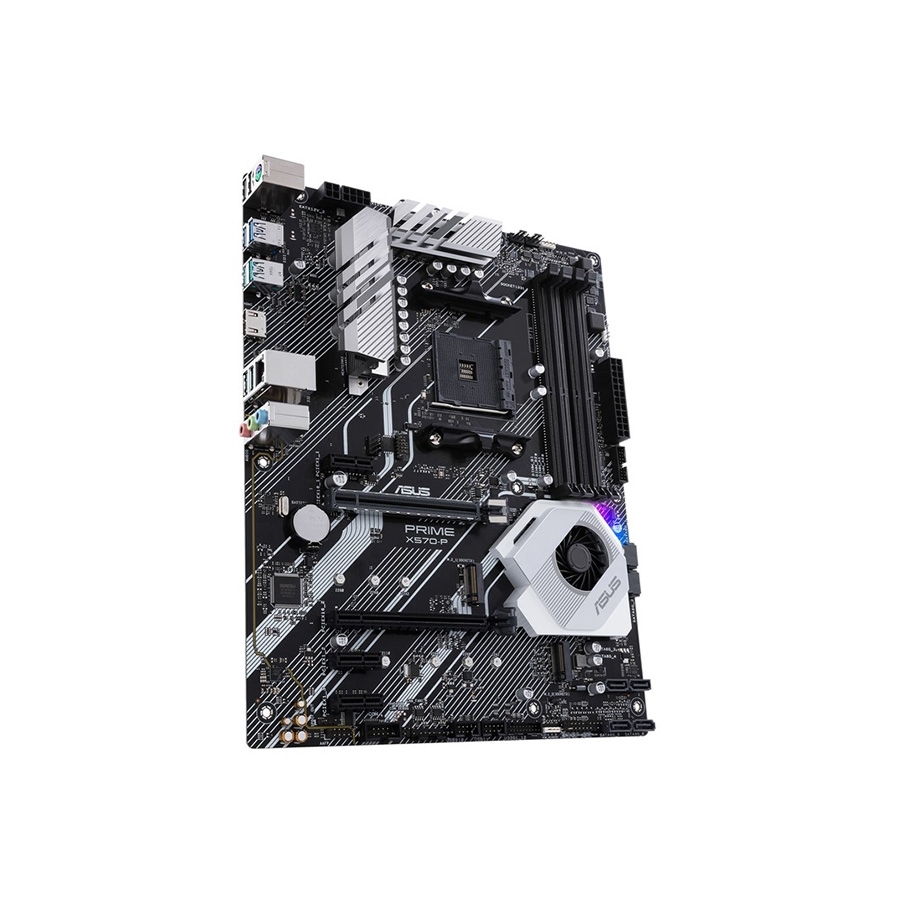

MB ASUS PRIME X570-P AMD AM4 ATX PCIe 4.0, , DDR4 4400MHz, dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 and Aura SynC RGB header
| Tip procesora | AMD |
|---|---|
| Podnožje | AMD® AM4 |
| Čipset | AMD® X570 |
| Format ploče | ATX |
| Podržani procesori | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Podržana memorija | DDR4 |
| Memorija | 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Multi-GPU podrška | 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology |
| Integrisana grafička karta | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors VGA output support : HDMI port – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz |
| Slotovi za proširenje | 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ VegaGraphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 |
| Storage | 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| Mrežna karta | Realtek® RTL8111H ASUS LAN Guard |
| Zvučna karta | Realtek® S1200A 8-Channel High Definition Audio CODEC * – Supports : Jack-detection, Front Panel Jack-retasking – Front panel audio connector (AAFP) |
| USB | 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *) 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A) AMD X570 chipset : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A) AMD X570 chipset : 4 x USB 3.2 Gen 1 port(s) (4 at mid-board) AMD X570 chipset : 5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board) * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors |

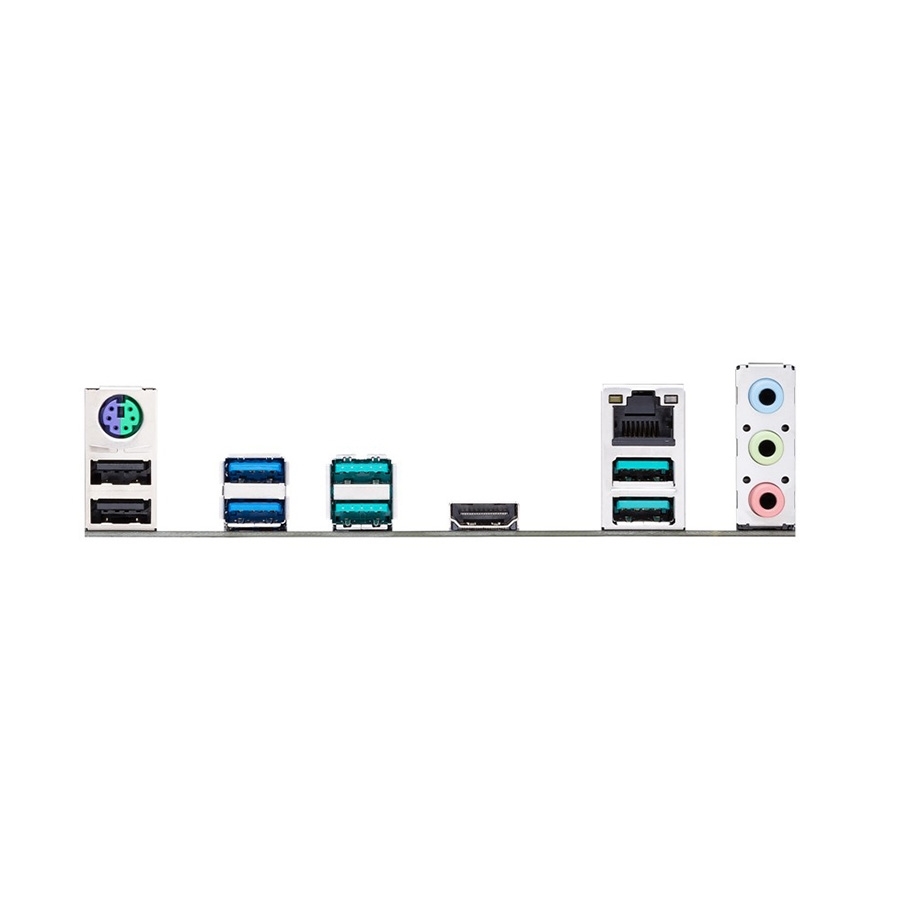

| Konektori na zadnjoj strani | 1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A *) * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors |
| Interni konektori | 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x PCH_FAN (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Ostalo | ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM – Digital power design with Dr. MOS – ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention – ASUS ESD Guards – Enhanced ESD protection ASUS SafeSlot – Protect your graphics card Investment ASUS OptiMem: – Improved DDR4 Stability ASUS EPU : – EPU AURA : – Aura RGB Strip Headers – Aura Control – Addressable Gen 2 Header ASUS Exclusive Features : – AI Suite 3 – Ai Charger – Armoury Crate ASUS Quiet Thermal Solution : – Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink – ASUS Fan Xpert 4 ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Q-Design : – ASUS Q-Slot – ASUS Q-DIMM |
